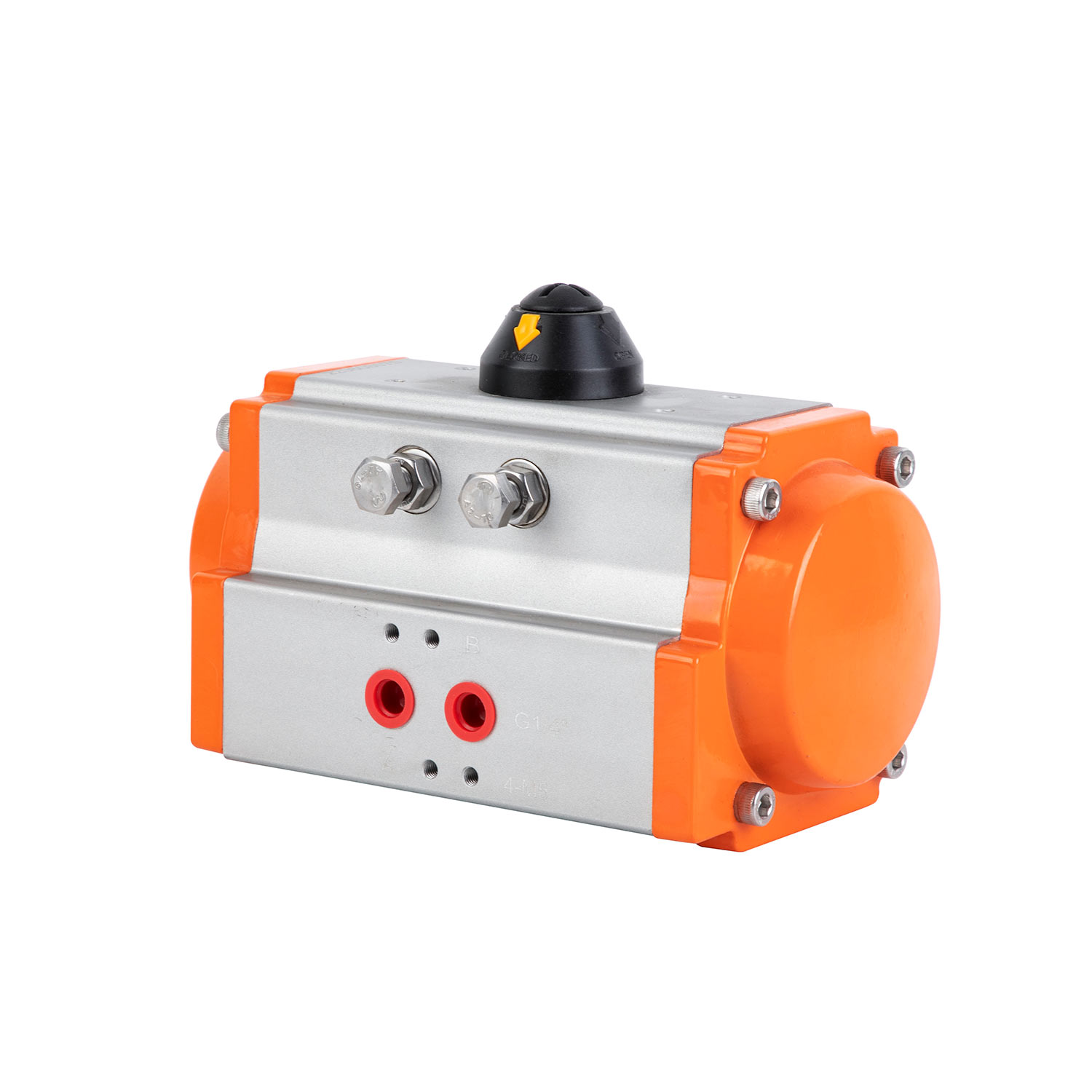

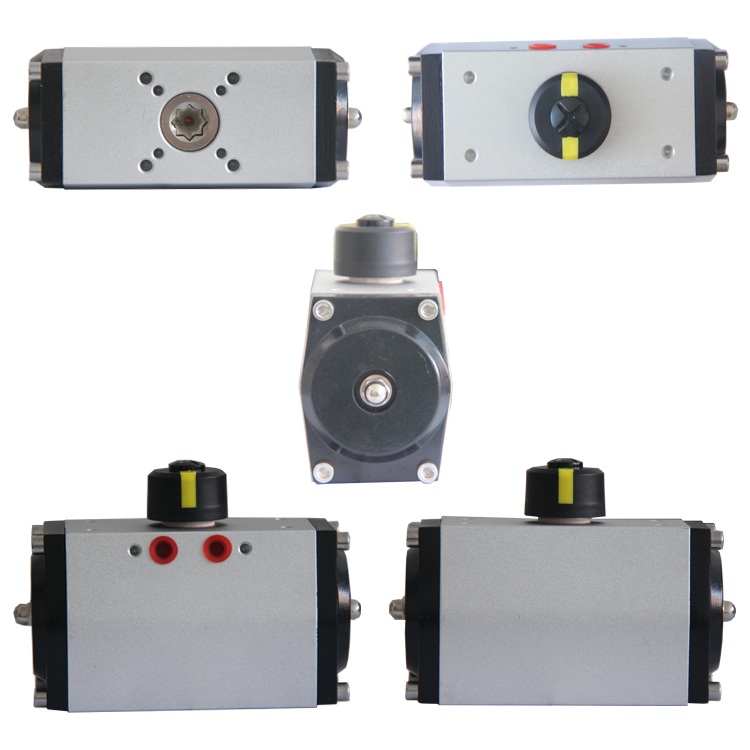

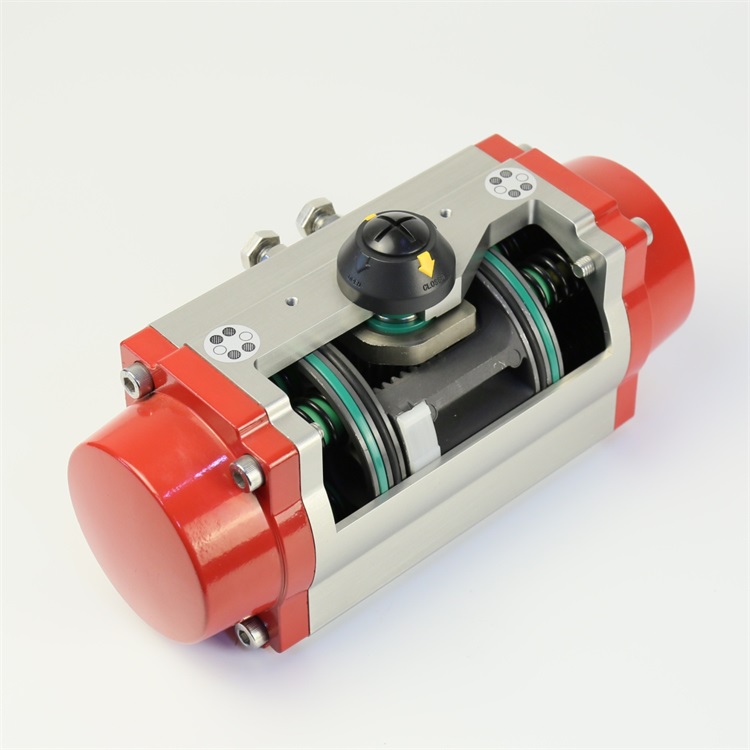

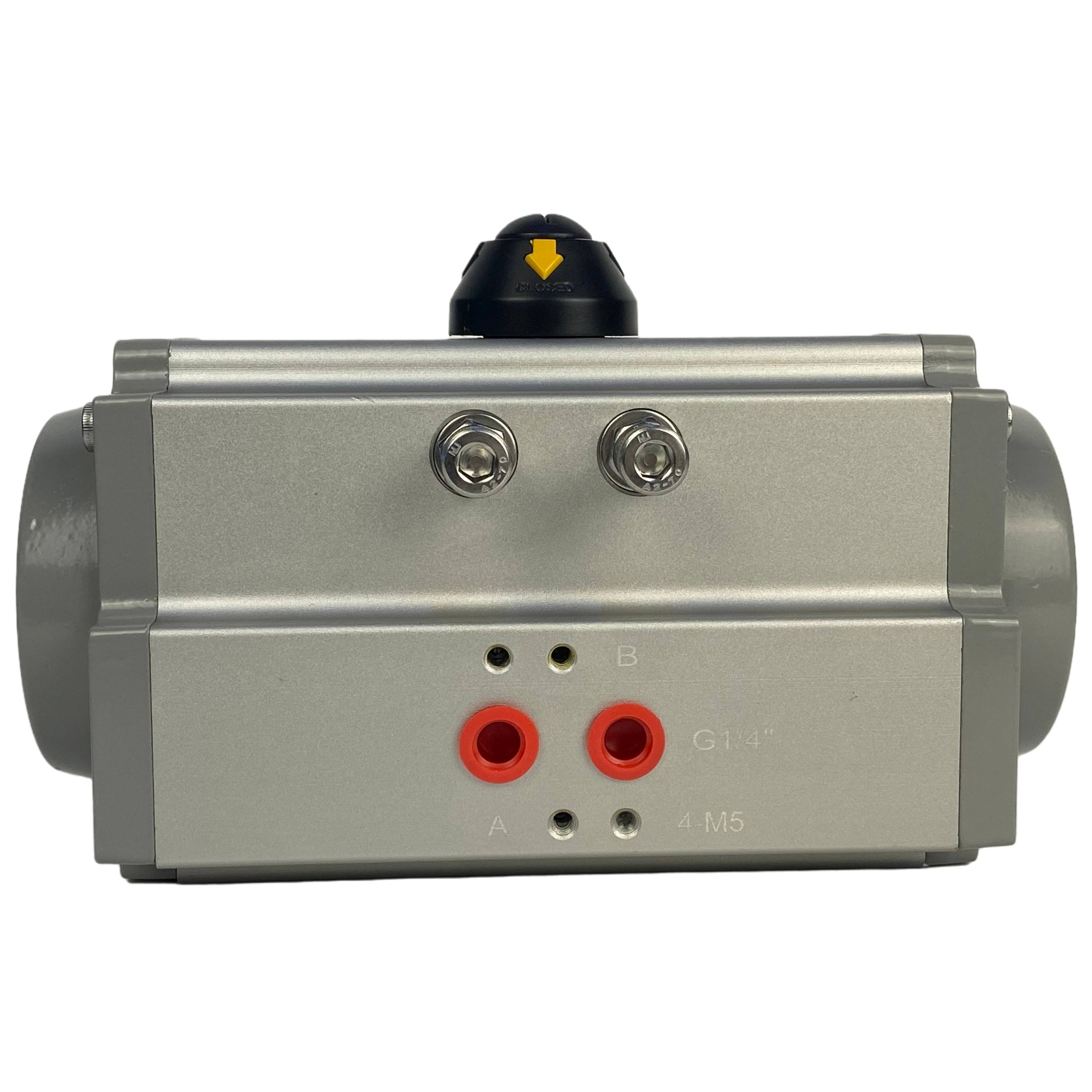

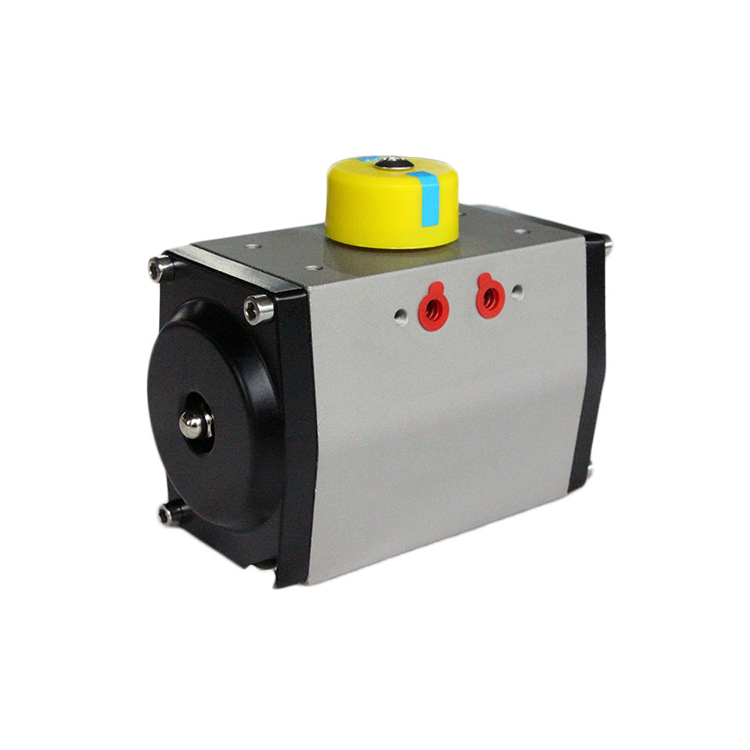

90 Degree Rotation Pneumatic Rack And Pinion Actuator
Product features
● Supply pressure air: 3.0 ~ 8.0Bar.
● Applicable temp range: -20℃ ~+80℃.
● Valve Connection: ISO 5211 / DIN3337 standard.
● Accessory connection: Namur standard, VDI / VDE3845.
● Control: double acting, spring return.
● Single acting normally closed; normally open.

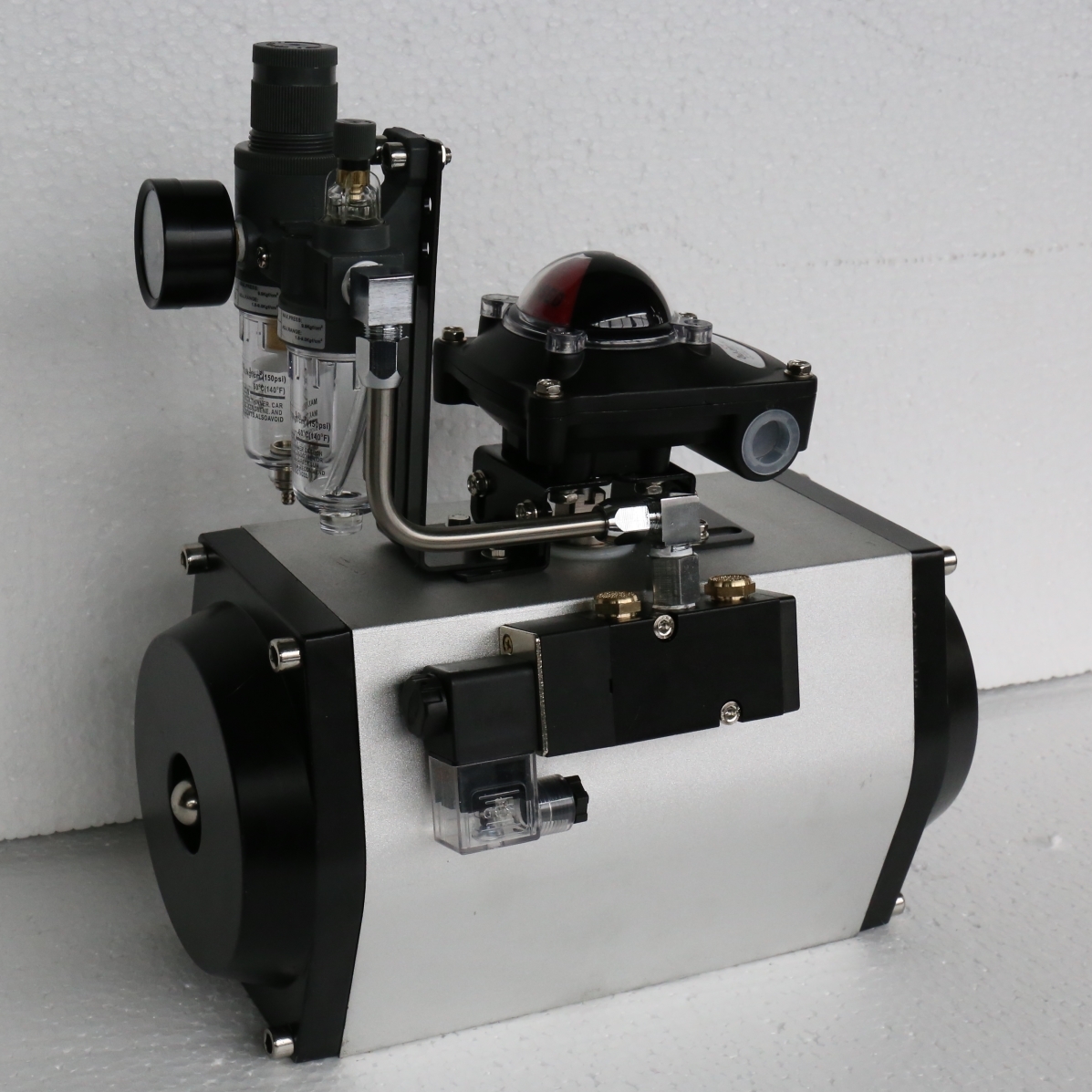

● Optional: air filter valve, E/P positioner, manual override.
Product specifications
Model Name |
Pneumatic rack and pinion actuator |
Series |
GT |
Cylinder Material |
Aluminum |
Shell treatment |
Hard Anode Oxidation or Polish |
Service |
Technical support, 24/7 on-time response, quality assurance |
Origin |
Zhejiang China |
Technical parameter
| MODEL | input Air Supply Fressure(Unit :Bar) | ||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| GTD32 | 3.1 | 4.7 | 6.2 | 7.8 | 9.4 | 11 | 12.5 |
| GTD52 | 8.32 | 12.48 | 16.64 | 20.8 | 24.96 | 29.1 | 33.2 |
| GTD63 | 12.2 | 18.3 | 24.4 | 30.5 | 36.3 | 42.8 | 48.9 |
| GTD75 | 20.7 | 31 | 41 | 51 | 62 | 72.5 | 82.9 |
| GTD83 | 29.6 | 44.4 | 59.2 | 74 | 88.8 | 103.6 | 1184 |
| GTD92 | 48 | 72 | 96 | 120 | 148 | 172 | 196 |
| GTD110 | 74.5 | 111.7 | 149 | 186.2 | 223.5 | 260.5 | 298 |
| GTD127 | 119 | 178.5 | 238 | 297.9 | 357 | 416.5 | 476.5 |
| GTD140 | 184.7 | 277 | 369.5 | 461.8 | 554 | 646.5 | 739 |
| GTD160 | 236 | 354.6 | 472 | 591 | 709 | 827 | 945 |
| GTD190 | 444 | 667 | 889 | 1111 | 1334 | 1556 | 1778 |
| GTD210 | 554 | 831 | 1108 | 1384 | 1662 | 1939 | 2216 |
FAQ
Q: How will you arrange the shipment?
A: We will arrange by sea shipment, by air, load, train and express delivery.

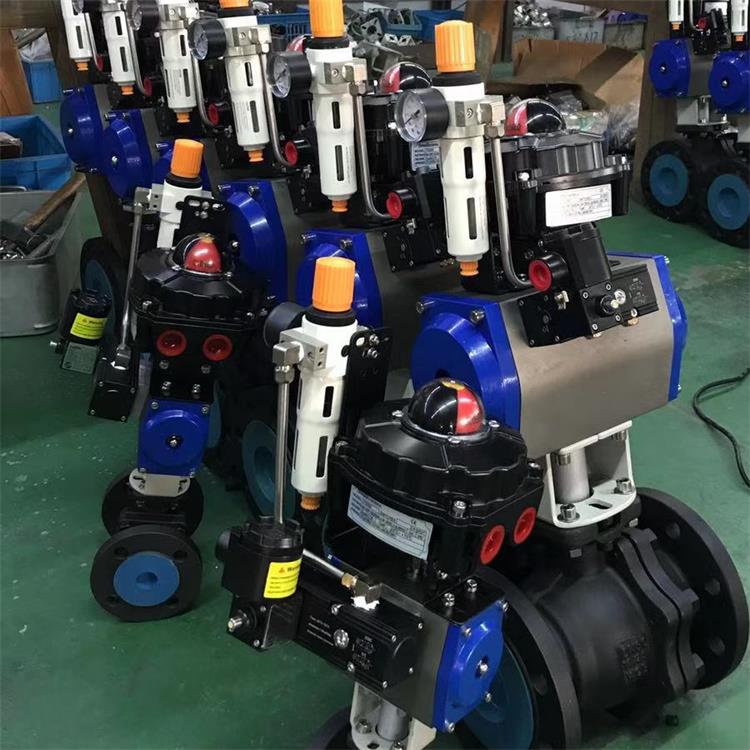

Q: Is that possible for you to assemble the valve and actuator for us?
A: Yes. If you buy the complete set of valve and actuator from us, we can assemble these for free.
